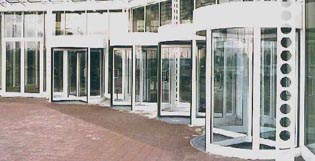

COMMERCIAL REVOLVING DOOR

Crystal Series

．alternative 。optional
Subject to technical modification

Function

．	manual, smooth-running
	。with rotational damping for speed limitation
．	positioning drive, rotates the door wings with low force until sealing brushes are applied
．	power-assisted drive, recommended for large or heavy door leaves with safety edges
	。quick stop
	。sensory analysis for automatic starting
．	electronmechanical interlock, to protect against intruders, remote-controllable, e.g. by means of emergency control switch (no-one is locked in!)
In the event of power failure
．	freely rotatable
．	interlocked (electronmechanically, see above, no-one is locked in)

Electrical Specification

Only with drive or lighting:
electronic controller installed in door drum
Supply:230 V AC 50 Hz

Export variants on request

Installation

．	on finished floor
．	on structural slab
	。on previously assembled floor ring
	。connection to drainage system of building
．	drive in top drum
．	drive in floor pit
．	underfloor drive

Detailed drawings of connection variants and of base tray components on request.

Options

。	outer body and resp. night locking facility reinforced against vandalism, burglary and (armed) attack
	。dto. door leaf cross
	。dto. inner body
。	lighting
。	heating - hot-air curtain
。	emergency power supply
。	special door handles
。	control desk or switchboard for remote control (on, off, optional operating mode selection switch and access control functions)

PLAN VIEW

<< CLICK FOR DETAILED PICTURE

Four leaf (180°), with night locking leaf

ELEVATION

<< CLICK FOR DETAILED PICTURE

Four leaf (180°), body side parts designed as framed glass panels, without central column, underfloor drive

ELEVATION

<< CLICK FOR DETAILED PICTURE

Four leaf (180°), body side parts metal cladded, door leaf cross with an allround door leaf frame, drive in top drum

LATERAL CONNECTION (example)

<< CLICK FOR DETAILED PICTURE

Consequent thermal protection through thermal isolation of the outer parts of the body in the facade level.

TOP CONNECTION (example)

<< CLICK FOR DETAILED PICTURE

DIMENSIONS
(all dimensions in mm)

For standard dimensions see table, all intermediate sizes available

D outside diameter	2100	2300	2500	2900	3300
di inside diameter	2000	2200	2400	2800	3200
H overall height	at least 2200 (without built-in drive) at least 2300 (with built-in drive)
h1 height of passage	at least 2100 (recommended)
h2 top drum	at least 100 (without built-in drive) at least 200 (with built-in drive)
